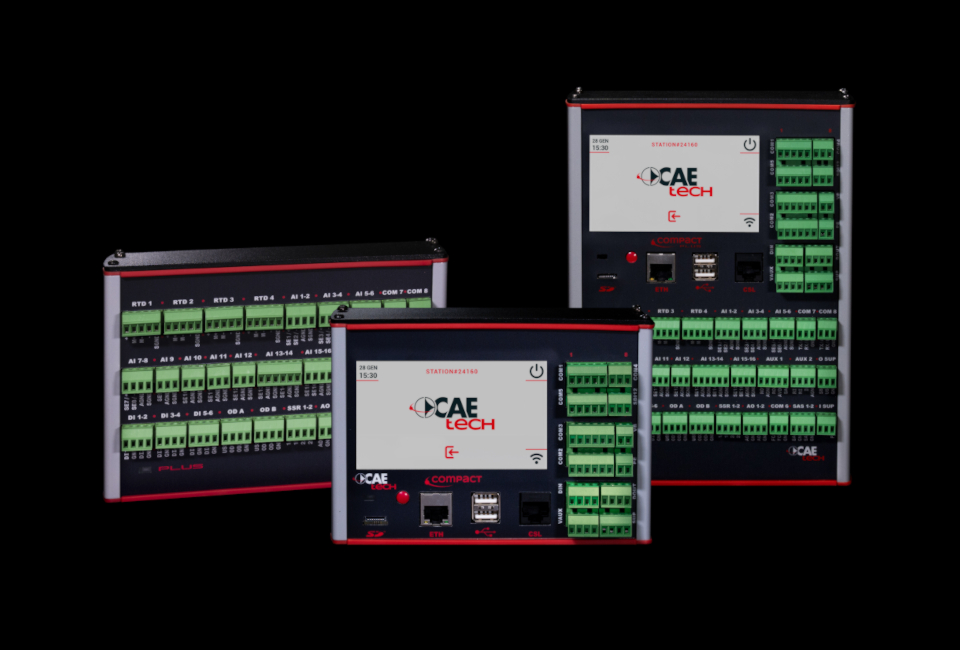

• Compact, Compact Plus, Plus
    Compact, Compact Plus, Plus
    Products
Description

The CAEtech dataloggers of the Compact line are innovative units designed to acquire and store data, making them available and, at the same time, allowing implementation of complex calculation algorithms that regulate the activation of local or remote alarms when specific events occur.

In order to best perform these tasks a power hardware has been created with Linux embedded operating system (Kernel 4), ensuring high flexibility and a user friendly graphic interface, keeping consumption low.

The products of the Compact line are compact and scalable and ensure the maximum flexibility and modularity at hardware, software, installation and data management level. They are open customisable products that allow the users to develop their own applications with the most common coding languages such as Python, C, Shell Script, etc.

Compact, Compact Plus, Plus
Features
Power 12 Vdc

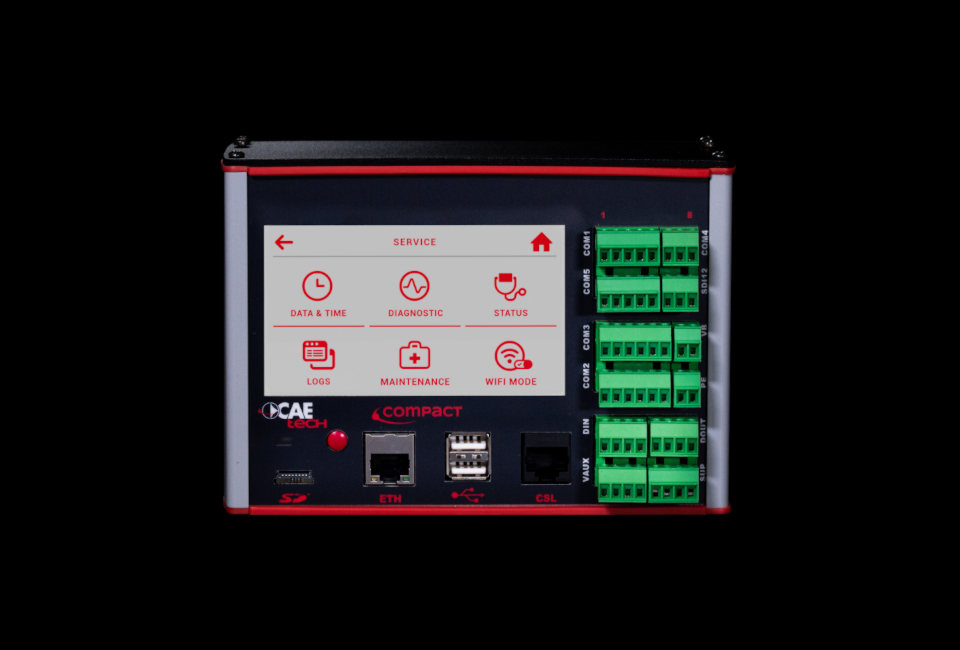

Display (Optional) Digital Touch Screen 4.3", Capacitive, Multi-touch
Processor ARM Cortex A7 MPCore@528 MHz with 5120 MB RAM
Sensor connectivity and communication equipment Compact: 6 x RS232/RS485/SDI-12; 2 x USB; WiFi/Bluetooth (optional); Ethernet 10/100; micro SD; 2 x Digital input, 2 x Digital output

Plus: 3 x RS232/RS485; 20 x Analog input (4 x PT100); 2 Analog output; 6 x Digital input, 6 x Digital output

Compact Plus: 9 x RS232/RS485/SDI-12; 2 x USB; WiFi/Bluetooth (optional); Ethernet 10/100; micro SD; 20 x Analog input (4 x PT100); 2 x Analog output;8 x Digital input; 8 x Digital output
Converter AD 24 bit
Program Flash 2GB
Acquisition unit Compact: Digital

Compac Plus: Analog and Digital
Download
Download

Download Brochure Datalogger Compact, Compact Plus, Plus_ENG
Support
Support

Support tool for CAETech's products buyers

Log In
Zero breakdown technology

Technology

Mechanical robustness is guaranteed by:
  • -    the attention to detail, starting with the design phase;
  • -    encoded, tracked and certified production processes;
  • -    the use of high quality materials;
  • -    the experience and training of production engineers.
ZBT allows the risk of sudden failure and loss of data to be minimised, by using:
  • -    redundant elements, which make sure that, if an element breaks, the product sends an alert while operating normally, giving time to intervene with the replacement without losing any data;
  • -    diagnostic sensors of various types, such as the ones for the verification of:
    • o   the correct inclination of the product,
    • o   the quality of the acquired measurement,
    • o   the value of the voltage input,
    • o   the status of inputs and outputs,
    • o   the conditions of the internal temperature,
    • o   the reliability of the RF link between all devices,
    • o   etc.
